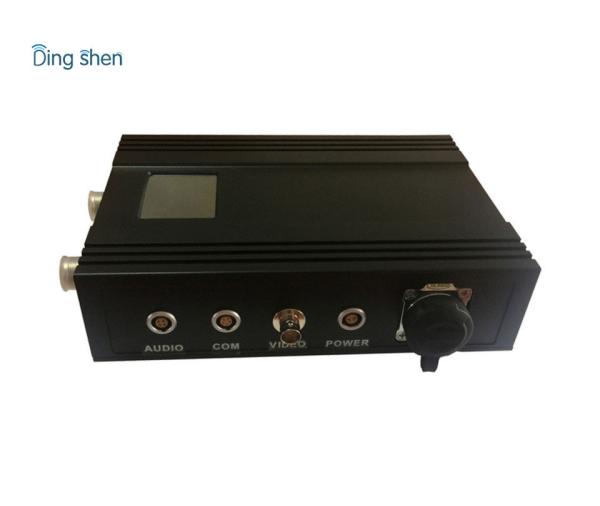

80km Long Range 1080p Wireless Transmitter Safety Equipment

Name: 80km Long Range 1080p Wireless Transmitter Safety Equipment
Brand: Ding Shen
Price: 1 USD

Wholesale 80km Long Range 1080p Wireless Transmitter Safety Equipment from china suppliers

Brand Name : Ding Shen

Model Number : DS-HDT5000

Place of Origin : Guangdong, China

MOQ : 1Set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : 3,000pcs per month

Delivery Time : 3-7 days

Packaging Details : export standard packing

Certification : CE/FCC

Frequency : 300-900Mhz or other frequency customized

Consumption : <40W

Constellation : QPSK(4QAM),16QAM,64QAM

Guard Interval : 1/32 1/16 1/8 1/4

Bandwidth : 2/3/4/6/7/8MHz (option)

Modulation : COFDM

Encryption : AEC

Contact Now

“COFDM” Great topology communication

1. Full duplex video/data wireless transmission

2. Large data throught for both video&data link

3. Point to multipoint telecommunication

4. Robust video IP solution

5. Tactical HD video and data control COFDM link

Transmitter parameter:

Frequency	300-900Mhz or other frequency customized
Modulation	COFDM
Consumption	<40W
Encryption	AES 128 bits
Constellation	QPSK(4QAM),16QAM,64QAM
FEC	1/2 2/3 3/4 5/6 7/8
Guard Interval	1/32 1/16 1/8 1/4
Carrier	2K,8K
Bandwidth	2/3/4/6/7/8MHz (option)
Transfer rate	6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power	2~5W adjustable
Video input	HDMI,CVBS,AHD,SDI (option)
Video coding	MPEG-4/H.264
Video resolution	19201080P/I@60fps; 1280720P/I@60fps; 704*576 PAL
Transmission distance	100km LOS from air to ground; 3-5km NLOS on ground station
Working voltage	DC12V
Working Temperature	-20℃ -- +55℃
Dimension	22015060mm
Weight	1362g
Box colour	Black
Antenna port	N type

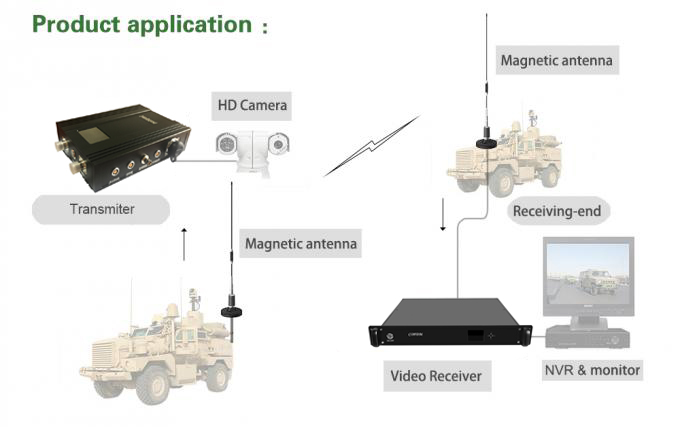

This special designed system is for UAV long range distance transmission, it is also popular to use in other fields for live broadcast video audio transmission.

Receiver parameter:

Frequency	300-900Mhz or other frequency customized
Bandwidth	2/3/4/5/6/7/8MHz (option)
RF input level	-94dBm~0dBm(8M)/-98dBm~0dBm(2M)
RF input impedance	50Ω
RF input type	N type
Modulation	COFDM
Constellation	QPSK,16QAM,64QAM(adjustable)
FEC	1/2,2/3,3/4,5/6,7/8(adjustable)
Carrier	2k
Guard Interval	1/32,1/16,1/8,1/4(adjustable)
Video coding	MPEG-4/H.264
Screen	4:3 16:9
Video resolution	1920*1080P/I@4Mhz
Audio output	Stereo unbalance 300/ 200mv
AV output	2 Audio output + 2 Video output; SDI
Working voltage	AC220V/DC12V <1A
Working Temperature	-20℃~+50℃
Dimension	48330044mm
Weight	1.5kg

80km Long Range 1080p Wireless Transmitter Safety Equipment

Product Tags:

Long Range 1080p Wireless Transmitter

80km 1080p Wireless Transmitter

COFDM Long Range Wireless Transmitter

80km Long Range 1080p Wireless Transmitter Safety Equipment Images
