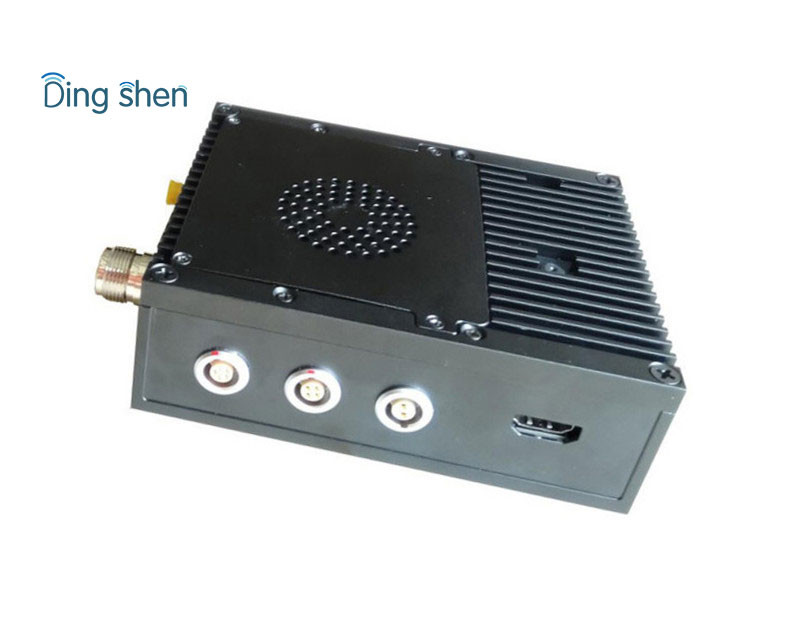

Broadcast Hd Sdi Analog Wireless Transmitter Analog Radio Receiver

Brand Name : Ding Shen

Model Number : DS-HDT5000

Place of Origin : china

MOQ : 1set

Price : Negotiaiton

Payment Terms : T/T

Supply Ability : Quantity(Sets) 1 - 100000 >100000

Delivery Time : 3-7 working days

Packaging Details : 220*150*60mm

Certification : CE/FCC

Frequency : 300-900Mhz or other frequency customized

Consumption : <40W

Constellation : QPSK(4QAM),16QAM,64QAM

Guard Interval : 1/32 1/16 1/8 1/4

Product name : Broadcast Hd Sdi UAV Long Range Distance Video Transmitte

Carrier : 2K,8K

Encryption : AES128/256bits

Modulation : COFDM

Contact Now

Safety Equipment Broadcast Hd Sdi UAV Long Range Distance Video Transmitter&Receiver

Such new design 1080P HD transmitter is a powerful HD transmit system, using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.264 encoding format and HDMI/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system.

300Mhz Broadband 10 KM 20 KM RF Wireless Most Lowest High Power Drone Camera Market Price Map Transmitter Military

1.Wireless Long Range

2.Full HD Resolution 1080P/1080I@30fps

3. or HDSDI Input

4.Digital COFDM

5.H.264 Video Compression

6.HD Video Transmission

7.Wireless Transmission

8.Low Delay

9.Live Broadcast

10.PAL / NTSC Selfadaption

Transmitter parameter:

Frequency	300-900Mhz or other frequency customized
Modulation	COFDM
Consumption	<40W
Encryption	AES 128 bits
Constellation	QPSK(4QAM),16QAM,64QAM
FEC	1/2 2/3 3/4 5/6 7/8
Guard Interval	1/32 1/16 1/8 1/4
Carrier	2K,8K
Bandwidth	2/3/4/6/7/8MHz (option)
Transfer rate	6Mbit@8M; 2.5Mbit@4M; 1.2Mbit@2M
RF power	2~5W adjustable
Video input	HDMI,CVBS,AHD,SDI (option)
Video coding	MPEG-4/H.264
Video resolution	19201080P/I@60fps; 1280720P/I@60fps; 704*576 PAL
Transmission distance	100km LOS from air to ground; 3-5km NLOS on ground station
Working voltage	DC12V
Working Temperature	-20℃ -- +55℃
Dimension	22015060mm
Weight	1362g
Box colour	Black
Antenna port	N type
