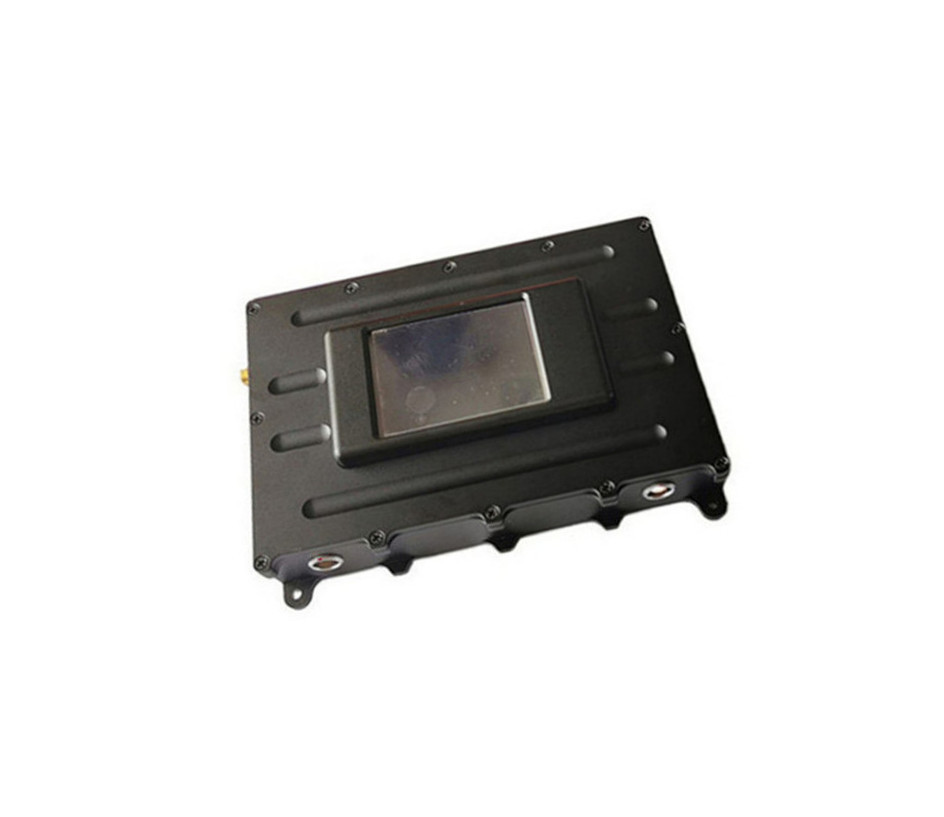

3W Wireless HD Video Transmitter Wireless Av Sender For Broadcast Live TV

Brand Name : Ding Shen

Model Number : DS-HDT3W

Place of Origin : Guangdong,china

MOQ : 1set

Payment Terms : T/T

Supply Ability : Quantity(Sets) 1 - 100000 >100000

Delivery Time : 3-7 working days

Packaging Details : 167*90*25mm

Certification : CE/FCC

DC Input : DC11V~DC16V

Modulation : COFDM

Power output : 1-3W(adjustable),in 1dB step

Encryption : AES128/256bits

Contact Now

Wireless HD Video Surveillance 1-3W COFDM Transmitter

COFDM Video Transmitter for Covert Surveillance and Law Enforcement

transmitter is an innovative product of wireless HD links for advanced and professional UAV drone applications. brings broadcast quality and robustness standards to the rapidly evolving and diversifying UAV aerial video arena.

smallest fpv hd-sdi 15km wireless cofdm video transmitter can transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.

Transmitter parameter:

Power section
DC Input	DC11V~DC16V
Working Current	≤1.1A DC12.5V
Transmitter section
Frequency range Output	250MHz-320MHz330MHz- 450MHz / 1000MHz --4400MHz,or can be customized according to customer's request.
Modulation	COFDM
RF bandwidth	4/8MHz(adjustable)
Power output	1-3W(adjustable),in 1dB step
SHG	>52dBc
Encryption	AES128/256bits
Constellation	QPSK,16QAM,64QAM
FEC	1/2,2/3,3/4,5/6, 7/8
Guard Interval	1/32,1/16,1/8,1/4
Carrier	2K
Flatness	Full band≤2dB,8MHz≤0.5dB
AV Interface	HDMI/SDI(have to choose one)
CNR(weighting)	58dB
Sloping field SNR(unweighted)	≥50dB
Analog Audio
Balanced audio input range	Vmax=±15V
Unbalanced audio input range	Vmax=3Vpp
HD interface	SDI/HDMI(single selection)
Encryption	AES 128/265 bit / ALLTECH Basic scrambling KIIMPOK TECHNOLLOGY CO..,, LLIIMIITED D
Standard	SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range	800±80(mV)
Versions	HDMI 1.3
HDCP protocol	Yes
Encoding support
AV rate	64,96,112,128,160,192,224,256,320,384Kbps(adjustable)
Audio encoding mode	MPEG1 Layer2
CBER	<2.0E-4
Video resolution	Maximum 1920×1080P/I@ 60P
Video coding	H.264
Video rate	500kbps-16.68Mbps(autoadaptation)
Format	YCbCr4:2:2
OperatingTemperature	-25℃~55℃
Storage Temperature	-40℃~70℃
Distance	20-60km LOS distance(on air) 1-3km NLOS distance(Ground to ground)
Appearance characteristics
Dimension	1679025mm
Weight	515g

3W Wireless HD Video Transmitter Wireless Av Sender For Broadcast Live TV
